• Maximum Load: 50 kg

• Weight: 22 kg

• Rotation: Horizontal 360° continuous; Tilt -60° to +20° (limited)

• Speed: Horizontal 0.01°–8°/s; Tilt 0.01°–4°/s

• Repeat Positioning Accuracy: ±0.1°

• Drive Mechanism: Worm gear transmission with auto-locking upon power outage

• Supported Functions: Query feedback/Real-time feedback

• Ingress Protection: IP66

• Communication Protocol: PELCO-D

• Interface: RS422

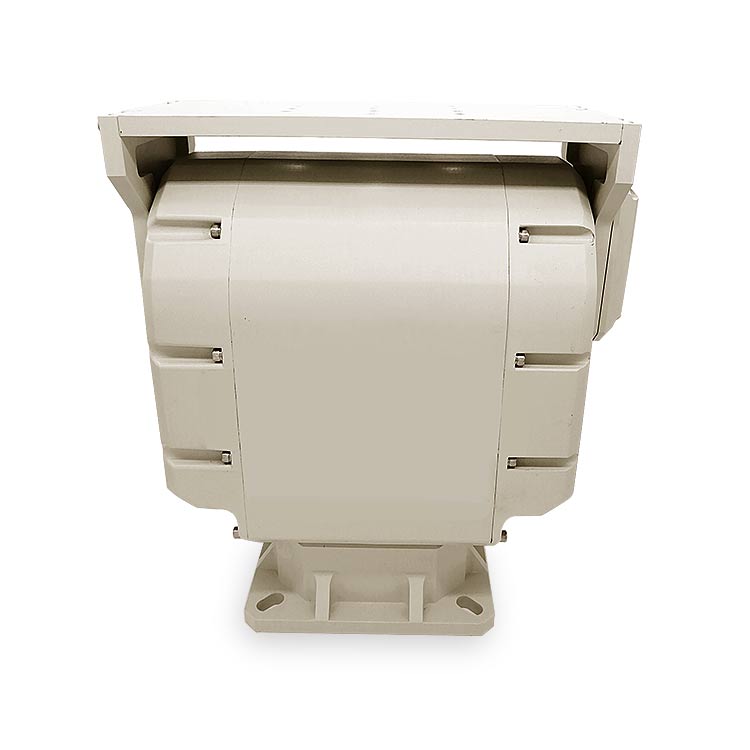

Desciription of Pan Tilt Positioner with 50kg / 110 lb Load Capacity

Designed for ultra-heavy-duty monitoring applications, this robust pan/tilt unit combines an exceptional 50 kg payload capacity with a durable 22 kg structure, ensuring reliable performance under extreme loads. Its core utilizes a precision worm gear transmission system that provides automatic positioning lock during power loss, critical for safety-critical applications.

The unit offers smooth 360° continuous horizontal rotation (0.01°–8°/s) and precise tilt movement (-60° to +20° at 0.01°–4°/s), maintaining ±0.1° repeatability. Real-time status query and feedback capabilities enable enhanced operational control. With support for PELCO-D protocol via RS422 interface, and IP66-rated protection against harsh environments, it is ideal for demanding installations such as critical infrastructure and industrial surveillance.

Technical Specification of Pan-Tilt Positioner with 50kg / 110 lb Load Capacity

Model	H–S050W-PT
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous) ; Tilt: -45° to +45° (Limited)
Rotation Speed	Pan: 0.01°/s to 10°/s ; Tilt: 0.01°/s to 5°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Yes
Angle Feedback	Query-based / Real-time
Auxiliary Switch	None
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS422
Power Supply Voltage	DC24V
Power Consumption (Operating)	≤90W
Power Consumption (Standby)	≤5W
Operating Temperature	-25℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	110 lb / 50 kg(Center of Gravity Height: 2 in / 50 mm)
Dimensions (LWH)	13.2 x 7.5 x 14.6 in ( 336 x 190 x 372 mm)
Weight	48.5 lb / 22 kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop System (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (15A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication)

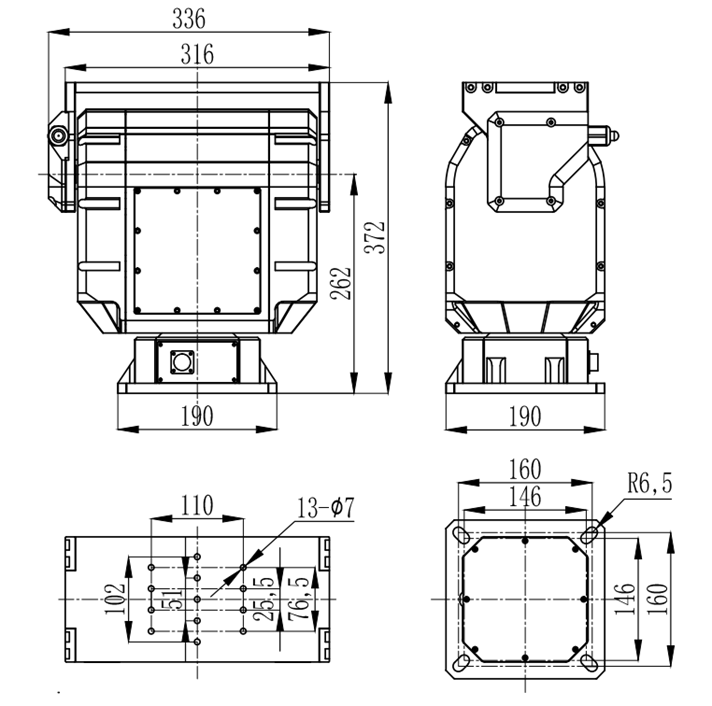

Dimension of Pan-Tilt Positioner with 50kg / 110 lb Load Capacity

FQA of Pan-Tilt Positioner with 50kg / 110 lb Load Capacity

1、Can the communication interface be changed to a network (IP) interface?

The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
