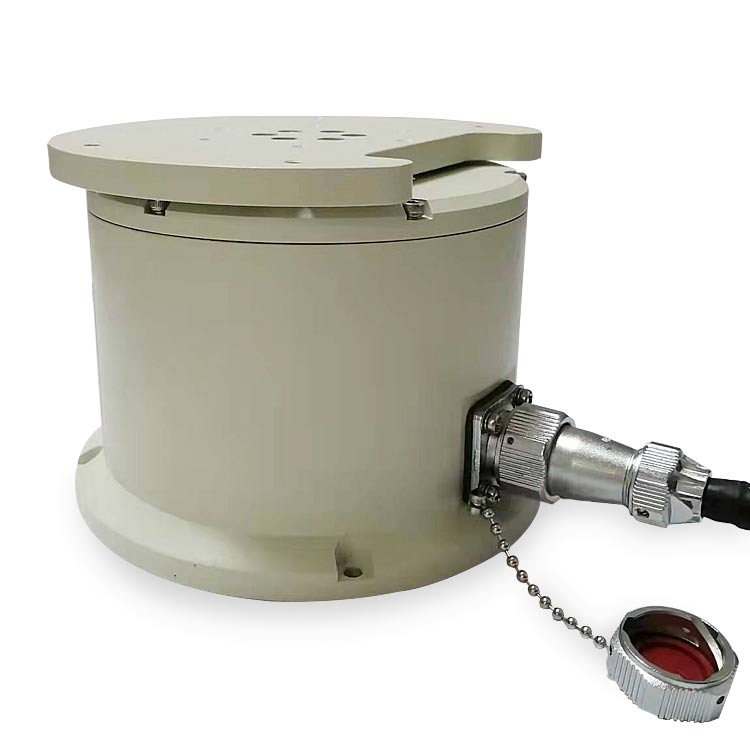

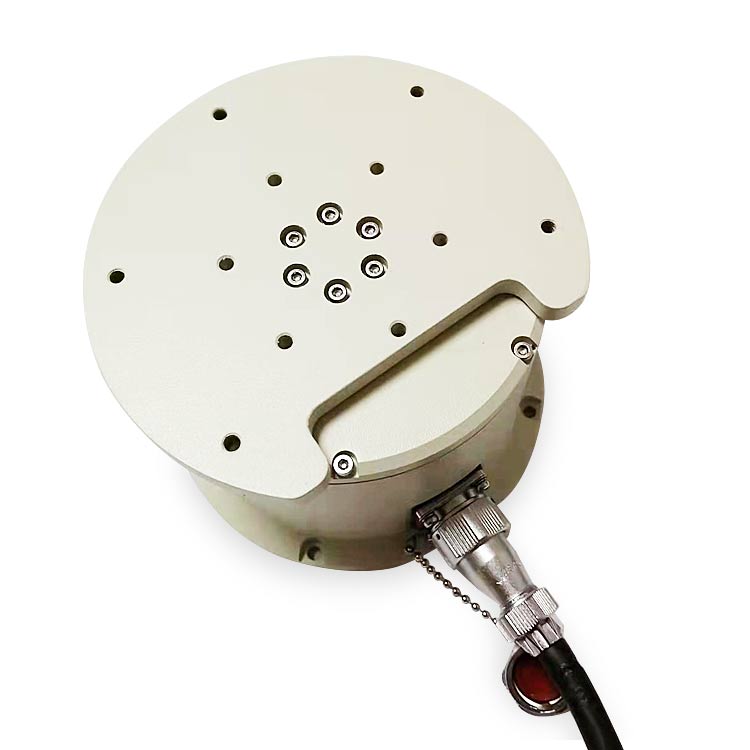

Compact Outdoor Intelligent Pan Positioner | 360° Continuous Rotation|3kg Payload

Compact Outdoor Intelligent Pan Positioner | 360° Continuous Rotation|3kg Payload

• Maximum load: 3 kg

• Weight: 2.1 kg

• Housing material: Die-cast aluminum alloy

• Horizontal rotation: 360° continuous

• Rotation speed: 0.01° – 20°/s

• Repeat positioning accuracy: ±0.2°

• Drive mechanism: Worm gear transmission with auto-locking upon power outage

• Supported functions: Query feedback/real-time feedback

• Ingress protection rating: IP66

Desciription of Single-Axis Pan Rotater/Positiner With 3kg

Engineered for precision and agility, this compact pan head boasts a 3 kg payload capacity and a lightweight profile of 2.1 kg, housed in a robust die-cast aluminum alloy chassis. It features seamless 360° continuous horizontal rotation with a wide speed range from 0.01° to 20°/s, enabling both ultra-slow tracking and rapid positioning.

The unit ensures high repeatability with an accuracy of ±0.2°, backed by a reliable worm gear drive that auto-locks upon power failure. Supporting real-time status query and feedback, and protected to IP66 standards, it is an ideal solution for dynamic and demanding surveillance applications.

Technical Specification of Single-Axis Pan Rotater/Positiner With 3kg

Model	H-S003W-P
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous)
Rotation Speed	Pan: 0.01°/s to 20°/s
Preset Positions	200
Positioning Accuracy	±0.2°
Power-On Self-Test	Yes
Angle Feedback	Query-based / Real-time
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	None
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS422
Power Supply Voltage	DC24V
Power Consumption (Operating)	≤30W
Power Consumption (Standby)	≤2W
Operating Temperature	-10℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	6.6 lb / 3 Kg (Measured with Center of Gravity centered on top plate, rotation diameter 3.9 in / 100mm.)
Dimensions (LWH)	5.5 x 5.5 x 4.3 in (140 x140 x110 mm)
Weight	4.6 lb /2.1 kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (5A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Input Power Cable (System Power)1x RS422 (Unit Communication)

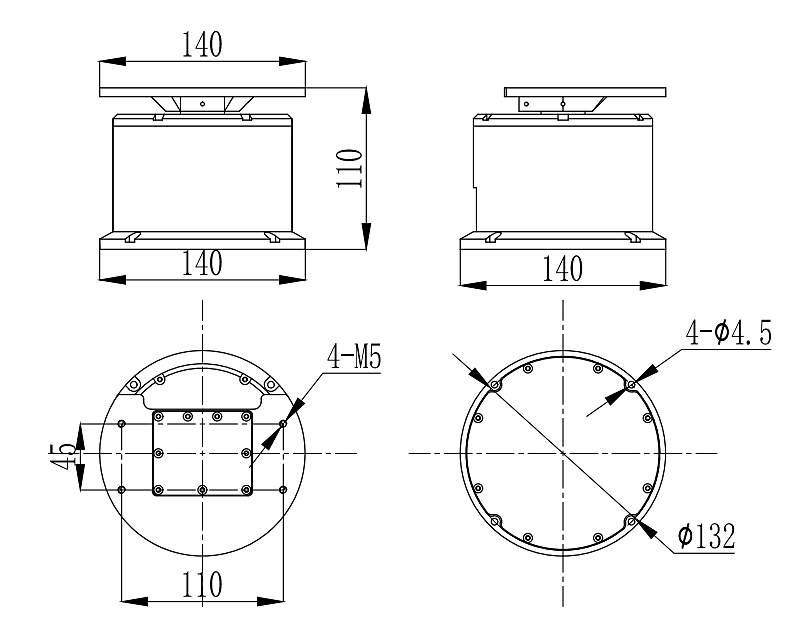

Dimension of Single-Axis Pan Rotater/Positiner With 3kg

FQA of Single-Axis Pan Rotater/Positiner With 3kg

1、Can the communication interface be changed to a network (IP) interface?

The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
