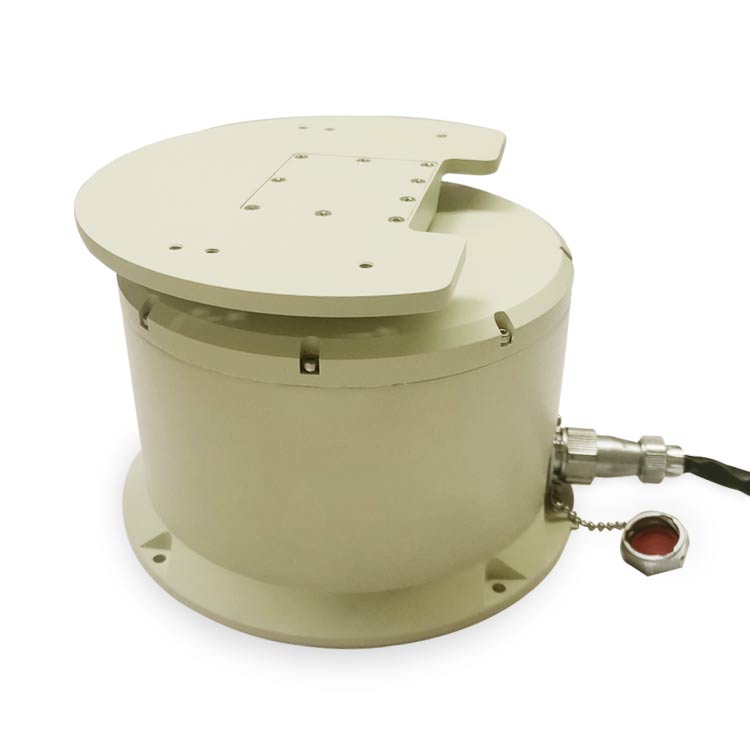

High-Torque Intelligent Pan System for Outdoor Use

High-Torque Intelligent Pan System for Outdoor Use | 10kg Max Load

• Maximum Load: 10 kg

• Weight: 4.5 kg

• Horizontal Rotation: 360° continuous

• Rotation Speed: 0.01° – 20°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Communication Interface: RS422

• Installation: Fixed

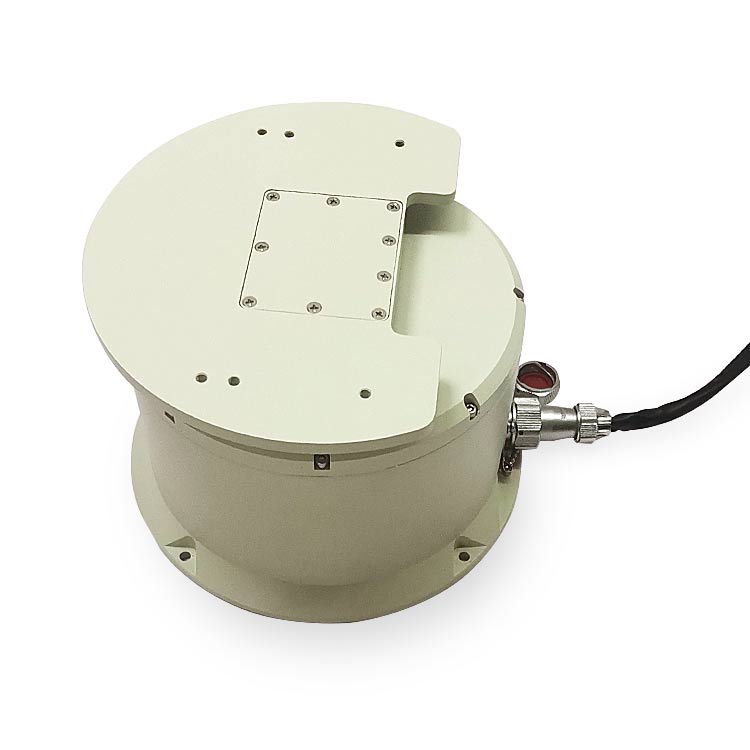

Desciription of Single-Axis Pan Positioner with 10 kg / 22 lb Load Capacity

Designed for heavy-duty applications, this high-capacity pan unit supports a substantial payload of 10 kg while maintaining a relatively light self-weight of 4.5 kg. It delivers reliable 360° continuous horizontal rotation with a wide speed range from 0.01° to 20°/s, ensuring both precise slow-speed tracking and rapid movement, all with a repeat positioning accuracy of ±0.1°.

The unit enhances operational efficiency with two auto-patrol routes, each supporting 40 preset points. It ensures broad compatibility through support for PELCO-D protocol via RS422 interface . With an IP66 rating and Fixed installation , it is built for demanding surveillance tasks in various environments.

Technical Specification of Single-Axis Pan Positioner with 10 kg / 22 lb Load Capacity

Model	H–S010W-P
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous)
Rotation Speed	Pan: 0.01°/s to 20°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Yes
Angle Feedback	Query-based / Real-time
Auxiliary Switch	None
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS422
Power Supply Voltage	DC24V
Power Consumption (Operating)	≤30W
Power Consumption (Standby)	≤2W
Operating Temperature	-20℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	22 lb / 10 kg ( Measured with Center of Gravity centered on top plate, rotation diameter 7.9 in / 200mm)

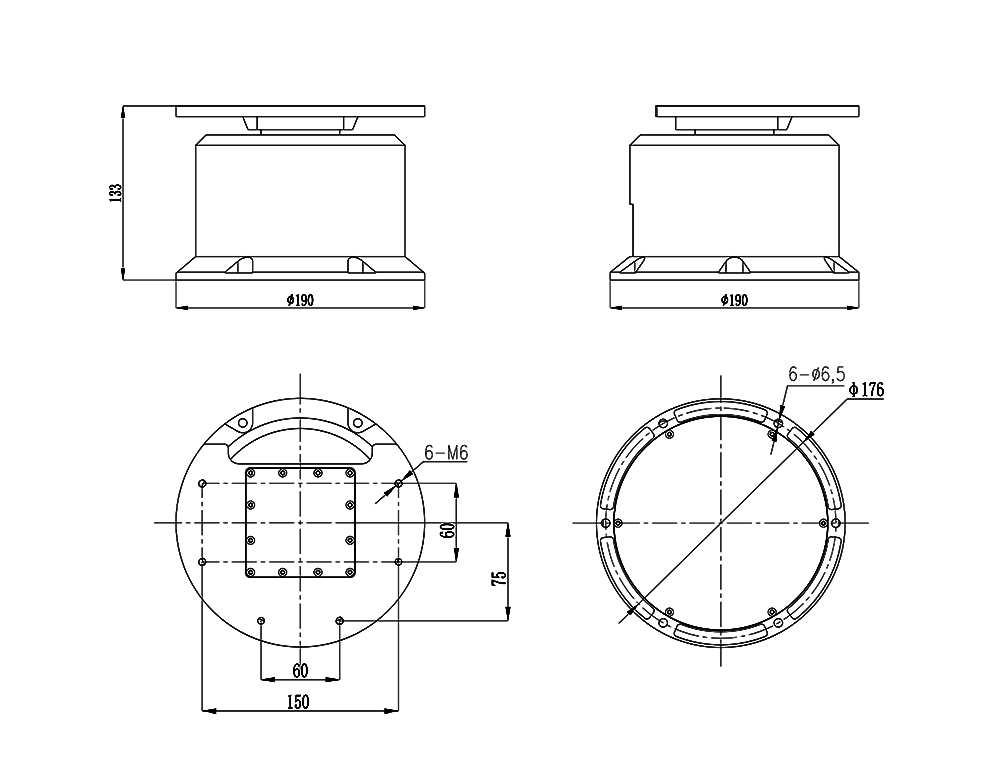

Dimensions (LWH)	7.5 x 7.5 x 5.2 in (190 x 190 x 133 mm)
Weight	9.9 lb / 4.5 kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (5A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core)1x DC24V Input Power Cable (System Power)1xRS422(Unit Communication)
