Outdoor Intelligent Tilt Positioner | Vertical Monitoring (-60° to +20°) | 10kg Payload
Maximum Load: 10 kg/ 22 lb
Weight: 5 kg/ 11 lb
Housing Material: Die-cast aluminum alloy
• Tilt Range: -60° to +20° (limited rotation)
• Tilt Speed: 0.01° – 10°/s
• Repeat Positioning Accuracy: ±0.1°
• Ingress Protection: IP66
• Communication Protocol: PELCO-D
• Communication Interface: RS422 interface
• Installation: Fixed

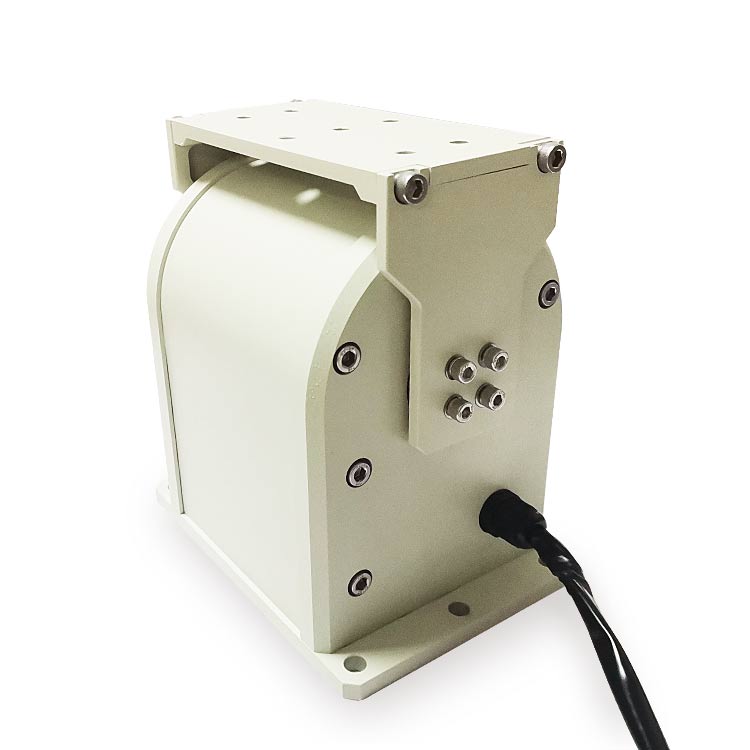

Desciription of Single-Axis Tilt Positioner with 10kg / 22 lb Load Capacity
This robust tilt unit is engineered for applications requiring a significant payload within a compact and durable design, offering a 10 kg load capacity with a self-weight of 5 kg. Its housing is constructed from die-cast aluminum alloy, ensuring excellent structural integrity.
The unit provides precise positioning across a tilt range of -60° to +20° with a speed adjustable from 0.01° to 10°/s, achieving a repeatability of ±0.1°. Designed for reliable integration, it supports PELCO-D protocol via RS422 interface. With an IP66 rating and fixed installation for protection against harsh elements, it is ideal for focused monitoring tasks demanding high stability and accuracy.
Technical Specification of Single-Axis Tilt Positioner with 10kg / 22 lb Load Capacity
| Model | H–S010W-T |
| House Color | Gray |
| Rotation Angle | Tilt: -60° to +20° (Limited) |
| Rotation Speed | Tilt: 0.01°/S to 10°/S |
| Preset Positions | 200 |
| Positioning Accuracy | ±0.1° |
| Power-On Self-Test | Yes |
| Angle Feedback | Query-based / Real-time |
| Auxiliary Switch | None |
| Auto Cruise | 2 patterns, 40 points each |
| Auto Home | Configurable (1～60 min) |
| Auto Scan | 1 pattern |
| Salt Spray Resistance | No significant surface change after 48hrs continuous spray (PH 6.5-7.2). |
| Communication Protocol | PELCO_D |
| Baud Rate | 9600bps（2400/4800/115200bps selectable） |
| Communication Interface | RS422 |
| Power Supply Voltage | DC24V |
| Power Consumption (Operating) | ≤50W |
| Power Consumption (Standby) | ≤5W |
| Operating Temperature | -25℃～+65℃，non-condensing |
| Storage Temperature | -40℃～+65℃ |
| Payload | 22 lb / 10 kg（Center of Gravity Height : 1.6 in / 40 mm） |
| Dimensions (LWH) | 7.1 x 5.1 x 7.8 in (180 x 130 x 197mm ) |
| Weight | 11 lb / 5 kg |
| Mounting Type | Top Mount |
| Self-Locking | Yes |
| Ingress Protection (IP) | IP66 |
| Installation Environment | Fixed Installation |
| System Type | Open-Loop (No Encoder) |
| Top Cable Pass-through | 1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (5A) |
| Bottom Cable Pass-through | 1x Gigabit Ethernet Passthrough Signal Cable(8-core)1x DC24V Input Power Cable (System Power)1x RS422 (Unit Communication) |

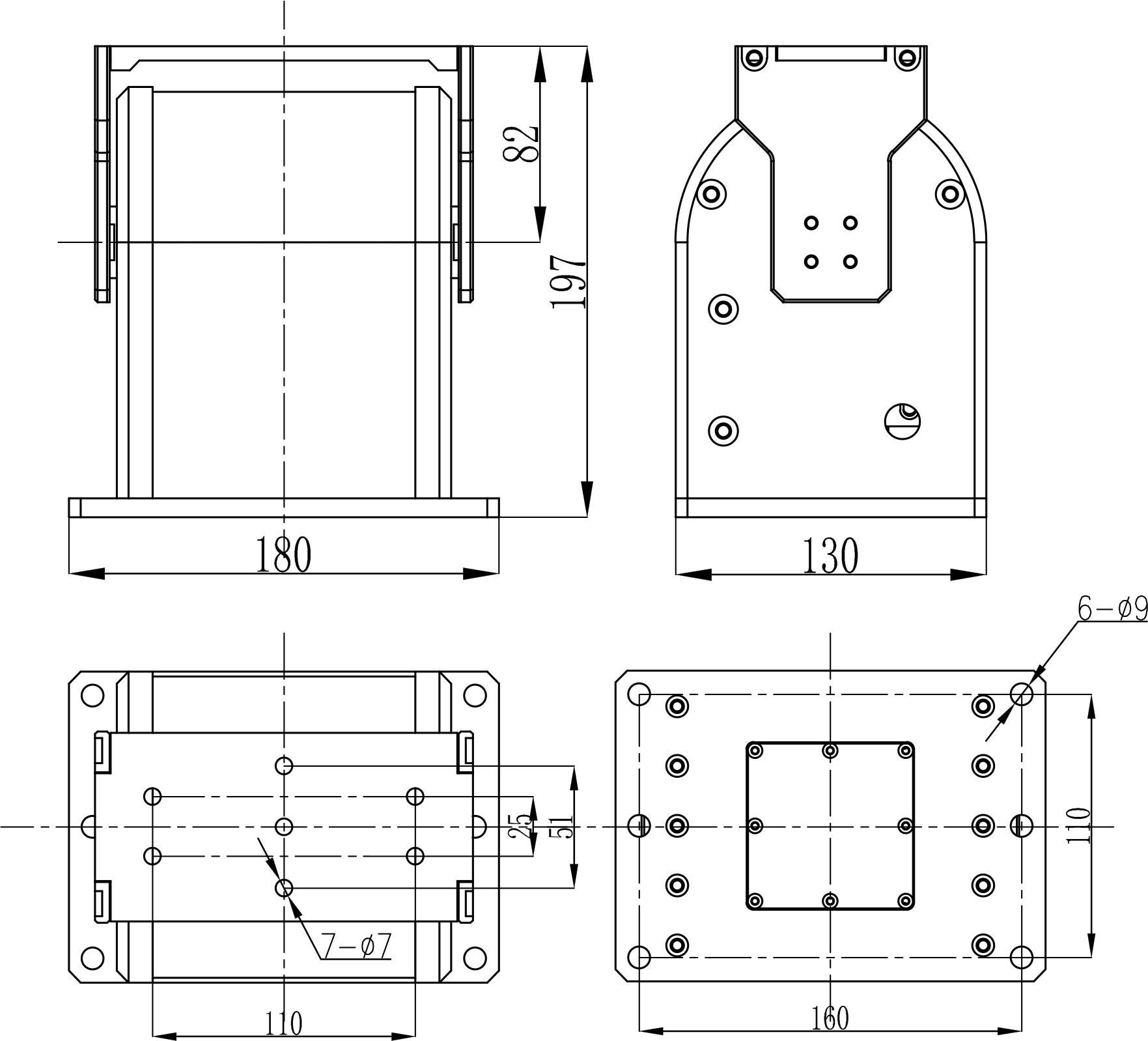

Dimension of Single-Axis Tilt Positioner with 10kg / 22 lb Load Capacity
FQA of Single-Axis Tilt Positioner with 10kg / 22 lb Load Capacity
1、Can the communication interface be changed to a network (IP) interface?
The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
