Intelligent Pan-Tilt Positioner | Worm Gear Drive

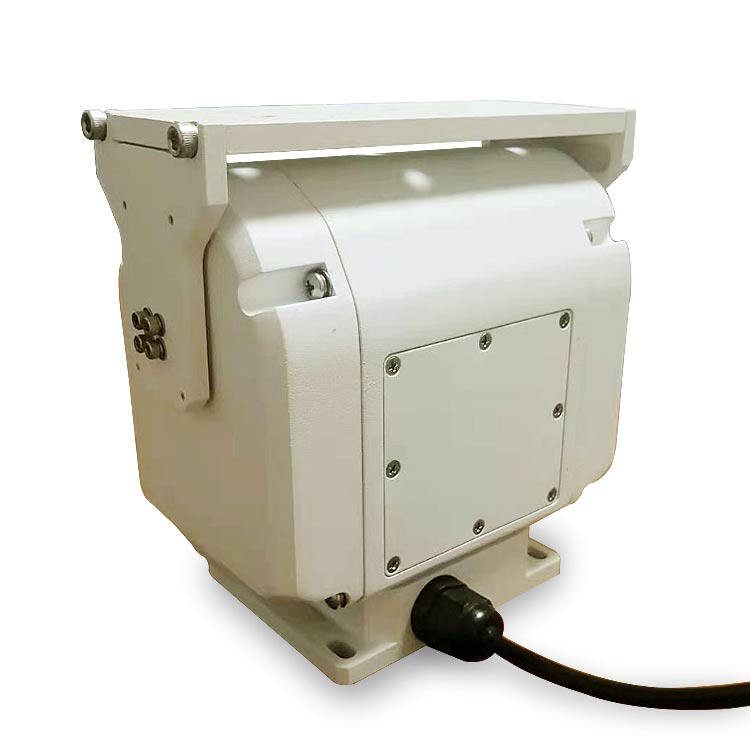

Intelligent Pan-Tilt Positioner | Worm Gear Drive | 4kg Load

• Maximum Load: 4 kg/ 8.8 lb

• Weight: 3.6 kg/ 7.9 lb

• Rotation: Horizontal 360° continuous; Tilt -60° to +20° (limited)

• Speed: Horizontal 0.01°–20°/s; Tilt 0.01°–10°/s

• Repeat Positioning Accuracy: ±0.1°

• Drive Mechanism: Worm gear transmission with auto-locking upon power outage

• Supported Functions: Query feedback / Real-time feedback

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Interface: RS422

Desciription of Pan-Tilt Positioner with 4kg / 8.8 lb Load Capacity

This robust and reliable pan/tilt unit strikes an optimal balance between payload capacity (4 kg) and maneuverability (3.6 kg self-weight). Its core is a precise worm gear transmission system that ensures stable operation and automatically locks the position upon power loss, a critical safety feature.

The unit provides full 360° continuous horizontal rotation at speeds up to 20°/s and a tilt range of -60° to +20° at up to 10°/s, achieving a repeatability of ±0.1°. It supports real-time status query/feedback and automated patrols via two programmable routes (40 presets each).

Technical Specification of Pan-Tilt Positioner with 4kg / 8.8 lb Load Capacity

Model	H–S004W-PT
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous); Tilt: -60° to +20° (Limited)
Rotation Speed	Pan: 0.01°/s to 20°/s ; Tilt: 0.01°/s to 10°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Yes
Angle Feedback	Query-based / Real-time
Auxiliary Switch	None
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS422
Power Supply Voltage	DC24V
Power Consumption (Operating)	≤60W
Power Consumption (Standby)	≤5W
Operating Temperature	-25℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	8.8 lb / 4 kg（Center of Gravity Height: 0.8 in / 20mm）
Dimensions (LWH)	7.2 x 3.9 x 6.9 in (184 x 100 x 175 mm)
Weight	7.9 lb / 3.6 kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop System
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (5A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication)

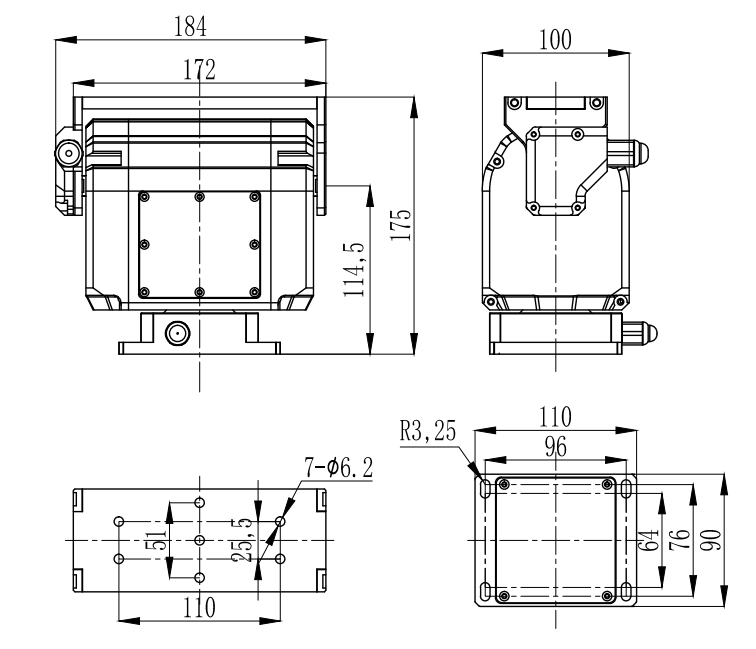

Dimension of Pan-Tilt Positioner with 4kg / 8.8 lb Load Capacity

FQA of Pan-Tilt Positioner with 4kg / 8.8 lb Load Capacity

1、Can the communication interface be changed to a network (IP) interface?

The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
