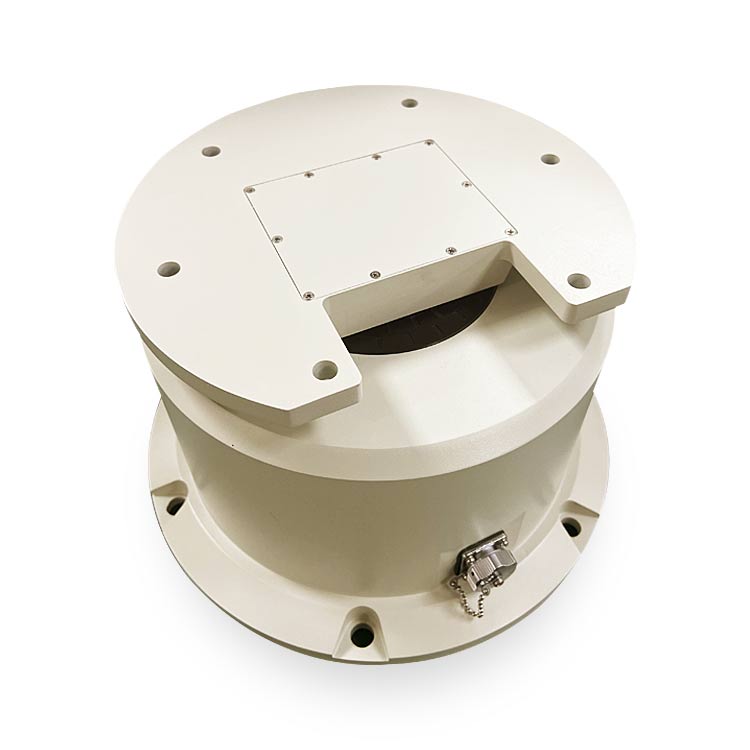

Industrial-Grade Outdoor Pan Positioner | Extreme 60kg Payload

Industrial-Grade Outdoor Pan Positioner | Extreme 60kg Payload | Intelligent Control

• Maximum Load:60 kg / 132.3 lb

• Weight: 16 kg/ 35.3 lb

• Horizontal Rotation: 360° continuous

• Rotation Speed: 0.01° – 5°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Communication Interface: RS422 interface

Desciription of Single-Axis Pan Positioner with 60kg / 132.3 lb Load Capacity

Designed for ultra-heavy-duty applications, this exceptionally robust tilt unit boasts a remarkable payload capacity of 60 kg, making it ideal for mounting large, complex payloads such as multi-sensor systems or high-power illuminators. Despite its high load rating, the unit maintains a manageable weight of 16 kg.

It provides smooth and stable 360° continuous horizontal rotation with a controlled speed range of 0.01° to 5°/s, prioritizing precise and steady movement for heavy loads. It achieves a repeat positioning accuracy of ±0.1°. The unit supports automated operations with two patrol routes (40 presets each) and ensures broad system integration via PELCO-D protocol over RS422 interface. With an IP66 rating and Fixed installation, it is built to perform reliably in the most demanding environments.

Technical Specification of Single-Axis Pan Positioner with 60kg / 132.3 lb Load Capacity

Model	H–S060W-P
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous)
Rotation Speed	Pan: 0.01°/s to 5°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Yes
Angle Feedback	Query-based
Auxiliary Switch	None
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS485
Power Supply Voltage	DC24V
Power Consumption (Operating)	≤50W
Power Consumption (Standby)	≤5W
Operating Temperature	-20℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	132.3 lb / 60 kg(Measured with Center of Gravity centered on top plate, rotation diameter 11.8 in / 300 mm.)
Dimensions (LWH)	13 x13 x 8.1 in (330 x 330 x 205 mm)
Weight	35.3 lb / 16kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (5A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core)1x DC24V Input Power Cable (System Power)1x RS422 (Unit Communication)

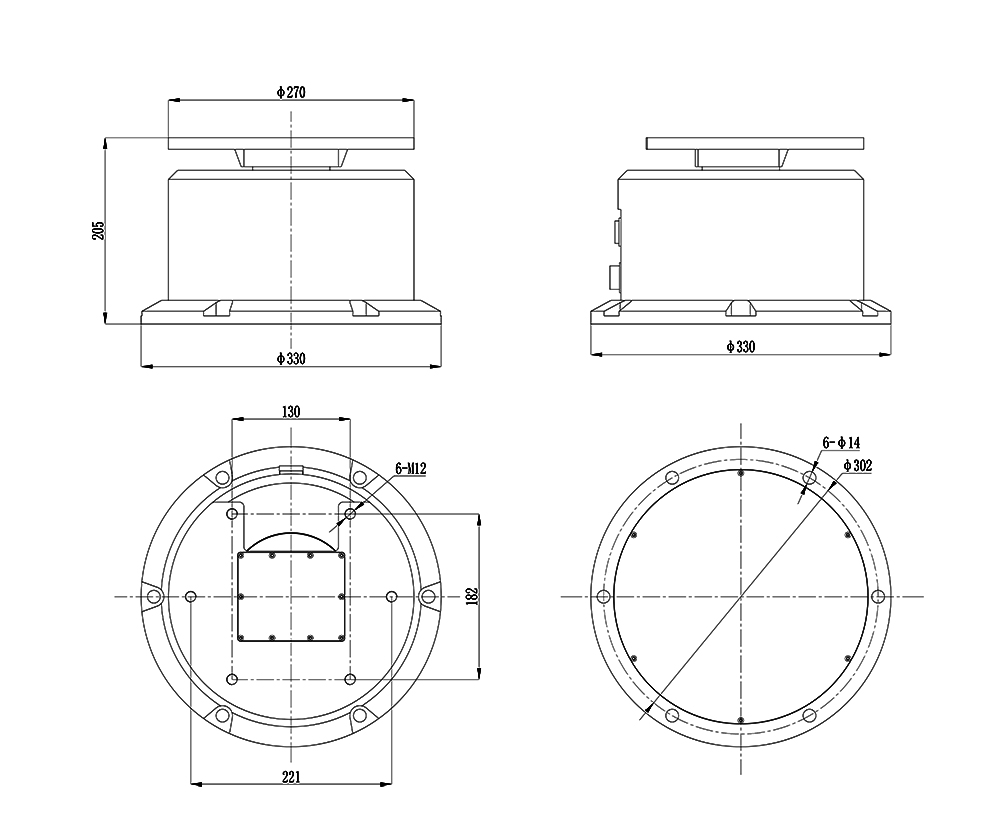

Dimension of Single-Axis Pan Positioner with 60kg / 132.3 lb Load Capacity

FQA of Single-Axis Pan Positioner with 60kg / 132.3 lb Load Capacity

1、Can the communication interface be changed to a network (IP) interface?

The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
