High-Speed Outdoor Pan-Tilt Head | 360° Pan & -60°/+20° Tilt

High-Speed Outdoor Pan-Tilt Head | 360° Pan & -60°/+20° Tilt | 2kg Capacity

• Maximum Load: 2 kg

• Weight: 3.2 kg

• Rotation: Horizontal 360° continuous; Tilt -60° to +20° (limited)

• Speed: Horizontal 0.01°–30°/s; Tilt 0.01°–15°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Interface: RS422

• Operating Temperature: -20°C to +65°C

• Installation: Fixed

Desciription of Pan-Tilt Positioner with 2kg / 4.4 lb Load Capacity

This high-speed pan/tilt unit is engineered for scenarios demanding rapid positioning and reliable performance under extreme conditions. It supports a 2 kg payload with a compact weight of 3.2 kg, enabling both 360° continuous horizontal rotation (up to 30°/s) and a -60° to +20° tilt range (up to 15°/s) for agile tracking.

The unit ensures precise movement with a repeatability of ±0.1% and offers automated operation via two patrol routes (40 presets each). With support for PELCO-D protocol across RS422 interface, it operates reliably across a wide temperature range of -20°C to +65°C. Featuring an IP66 rating and installation for fixed use, it is ideal for high-speed monitoring in harsh environments.

Technical Specification of Pan-Tilt Positioner with 2kg / 4.4 lb Load Capacity

Model	H–S002W-PT
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous); Tilt: -60° to +20° (Limited)
Rotation Speed	Pan: 0.01°/s to 30°/s; Tilt: 0.01°/S to 15°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Yes
Angle Feedback	Query-based / Real-time
Auxiliary Switch	None
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS422
Power Supply Voltage	DC24V
Power Consumption (Operating)	≤50W
Power Consumption (Standby)	≤5W
Operating Temperature	-20℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	4.4 lb /2 kg（Center of Gravity Height: 0.8 in / 20 mm）
Dimensions (LWH)	7.2 x 3.9 x 6.9 in (184 x 100 x 175 mm)
Weight	7.1 lb / 3.2 kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop System
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (5A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication)

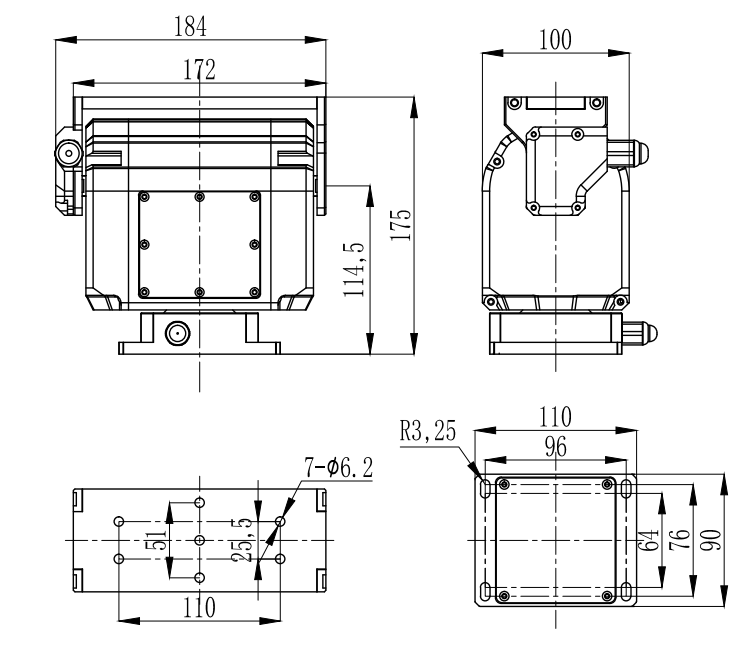

Dimension of Pan-Tilt Positioner with 2kg / 4.4 lb Load Capacity

FQA of Pan-Tilt Positioner with 2kg / 4.4 lb Load Capacity

1、Can the communication interface be changed to a network (IP) interface?

The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
