High-Load Pan-Tilt Positioner | 20kg Capacity | Multi-Protocol Support

High-Load Pan-Tilt Positioner | 20kg Capacity | Multi-Protocol Support

Maximum Load: 20kg / 44.1 lb

Weight: 11 kg/ 24.3 lb

Rotation: Horizontal 360° continuous; Tilt -60° to +20° (limited)

• Speed: Horizontal 0.01°–20°/s; Tilt 0.01°–10°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Communication Protocol: PELCO-D

• Interface: RS422

• Operating Temperature: -25°C to +65°C

• Installation: Fixed

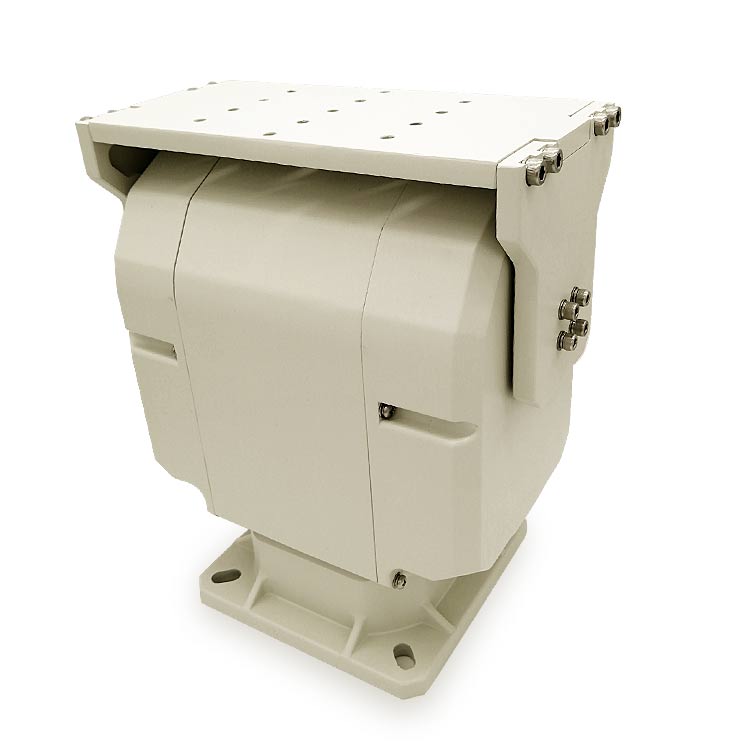

Desciription of Pan-Tilt Positioner with 20kg / 44.1 lb Load Capacity

Engineered for extreme-duty applications, this high-capacity pan/tilt unit delivers an exceptional 20 kg payload capacity with an optimized weight of 11 kg, achieving an outstanding load-to-weight ratio for stable operation.

It ensures full-area monitoring through 360° continuous horizontal rotation and a -60° to +20° tilt range, with precise speed control from 0.01° to 20°/s (horizontal) and 0.01° to 10°/s (tilt), maintaining ±0.1° repeatability. Designed for harsh environments, it operates reliably in temperatures from -25°C to +65°C and features IP66 corrosion and weather resistance.

Technical Specification of Pan-Tilt Positioner with 20kg / 44.1 lb Load Capacity

Model	H-S020W-PT
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous) ; Tilt: -60° to +20° (Limited)
Rotation Speed	Pan: 0.01°/s to 20°/s ; Tilt: 0.01°/s to 10°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Yes
Angle Feedback	Query-based / Real-time
Auxiliary Switch	None
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS422
Power Supply Voltage	DC24V
Power Consumption (Operating)	≤90W
Power Consumption (Standby)	≤5W
Operating Temperature	-25℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	44.1 lb / 20 kg（Center of Gravity Height: 2 in / 50 mm）
Dimensions (LWH)	10.7 x 6.7 x 11.8 in (272 x170 x 300 mm)
Weight	24.3 lb / 11 kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop System (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (10A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication)

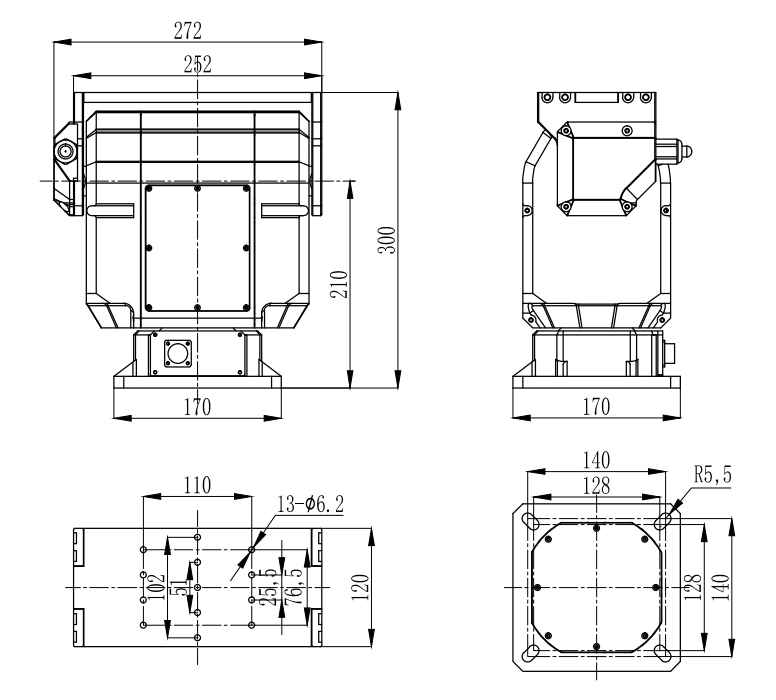

Dimension of Pan-Tilt Positioner with 20kg / 44.1 lb Load Capacity

FQA of Pan-Tilt Positioner with 20kg / 44.1 lb Load Capacity

1、Can the communication interface be changed to a network (IP) interface?

The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
