High-Capacity Tilt Head for Heavy Payloads | 50kg Max Load | All-in-One Design
• Maximum Load: 50 kg/ 110.2 lb
• Weight: 12 kg/ 26.5 lb
• Housing Material: Die-cast aluminum alloy
• Tilt Range: -60° to +20° (limited rotation)
• Tilt Speed: 0.01° – 5°/s
• Repeat Positioning Accuracy: ±0.1°
• Drive Mechanism: Worm gear transmission with auto-locking upon power outage
• Supported Functions: Query feedback / Real-time feedback
• Ingress Protection: IP66

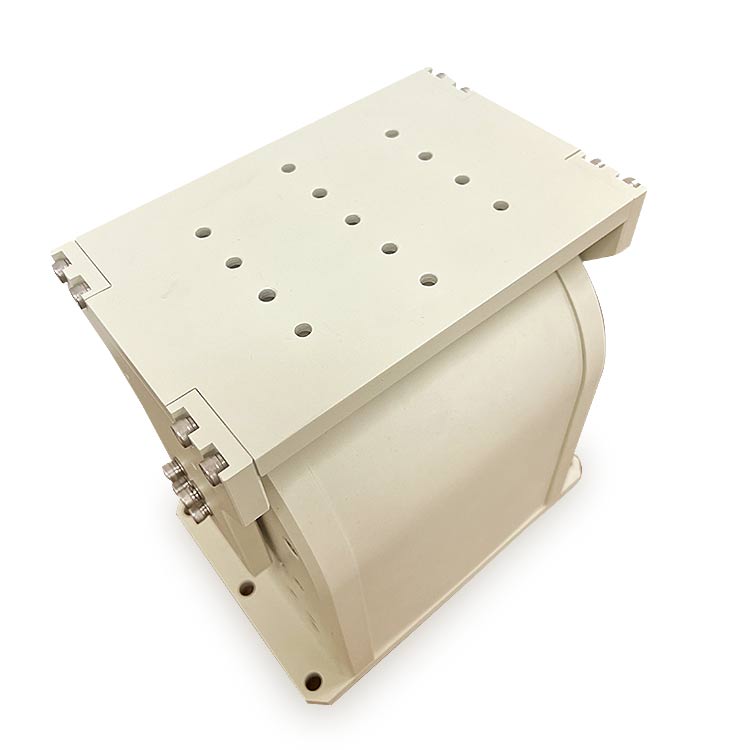

Desciription of Single-Axis Tilt Positioner with 50 kg /110.2 lb Load Capacity
Engineered for ultra-heavy-duty vertical positioning, this robust tilt unit boasts an exceptional payload capacity of 50 kg while maintaining a relatively light weight of 12 kg, thanks to its high-strength die-cast aluminum alloy housing. The mechanism utilizes a reliable worm gear drive that ensures automatic locking in case of power failure, providing critical safety for heavy loads.
It delivers precise and controlled movement across a -60° to +20° arc with a speed range of 0.01° to 5°/s, achieving a repeatability of ±0.1%. The unit supports real-time status query and feedback for comprehensive monitoring. With an IP66 protection rating, it is built to operate reliably in challenging outdoor environments, making it ideal for demanding applications requiring secure and stable handling of substantial equipment.
Technical Specification of Single-Axis Tilt Positioner with 50 kg /110.2 lb Load Capacity
| Model | H–S050W-T |
| House Color | Gray |
| Rotation Angle | Tilt: -60° to +20° (Limited) |
| Rotation Speed | Tilt: 0.01°/s to 5°/s |
| Preset Positions | 200 |
| Positioning Accuracy | ±0.1° |
| Power-On Self-Test | Yes |
| Angle Feedback | Query-based / Real-time |
| Auxiliary Switch | None |
| Auto Cruise | 2 patterns, 40 points each |
| Auto Home | Configurable (1～60 min) |
| Auto Scan | 1 pattern |
| Salt Spray Resistance | No significant surface change after 48hrs continuous spray (PH 6.5-7.2). |
| Communication Protocol | PELCO_D |
| Baud Rate | 9600bps(2400/4800/115200bps selectable) |
| Communication Interface | RS422 |
| Power Supply Voltage | DC24V |
| Power Consumption (Operating) | ≤60W |
| Power Consumption (Standby) | ≤5W |
| Operating Temperature | -25℃～+65℃，non-condensing |
| Storage Temperature | -40℃～+65℃ |
| Payload | 110.2 lb / 50 kg（Center of Gravity Height:1.9 in / 50 mm） |
| Dimensions (LWH) | 9.8 x7.1 x 10.4 in ( 250 x 180 x 264 mm) |
| Weight | 26.5 lb /12 kg |
| Mounting Type | Top Mount |
| Self-Locking | Yes |
| Ingress Protection (IP) | IP66 |
| Installation Environment | Fixed Installation |
| System Type | Open-Loop (No Encoder) |
| Top Cable Pass-through | 1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (5A) |
| Bottom Cable Pass-through | 1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication) |
Dimension of Single-Axis Tilt Positioner with 50 kg /110.2 lb Load Capacity
FQA of Single-Axis Tilt Positioner with 50 kg /110.2 lb Load Capacity
1、Can the communication interface be changed to a network (IP) interface?
The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
