• Maximum Load: 80 kg/ 176 lb

• Weight: 32 kg/ 70.5 lb

• Rotation: Horizontal 360° continuous; Tilt -45° to +45° (limited)

• Speed: Horizontal 0.01°–10°/s; Tilt 0.01°–5°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Interface: RS422

• Operating Temperature: -25°C to +65°C

• Installation: Fixed

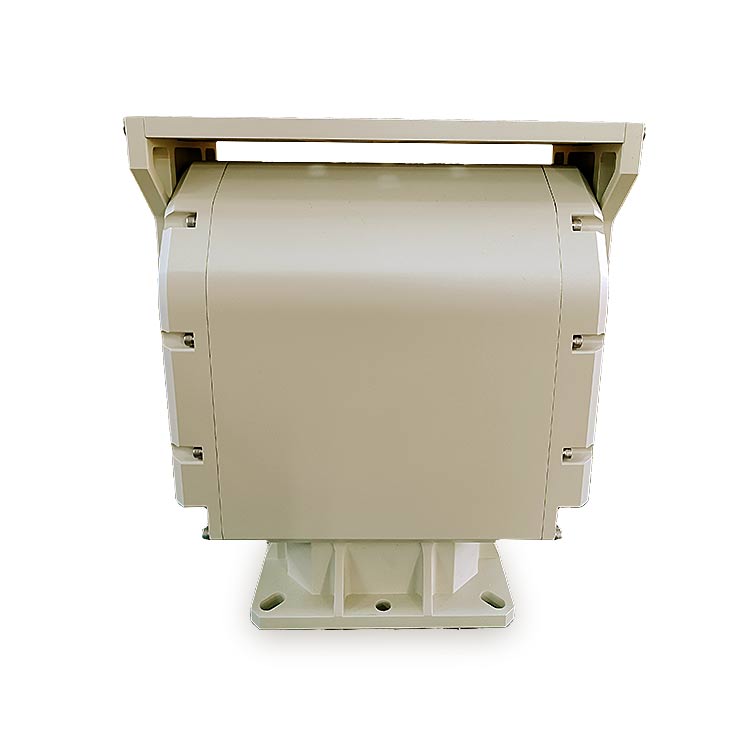

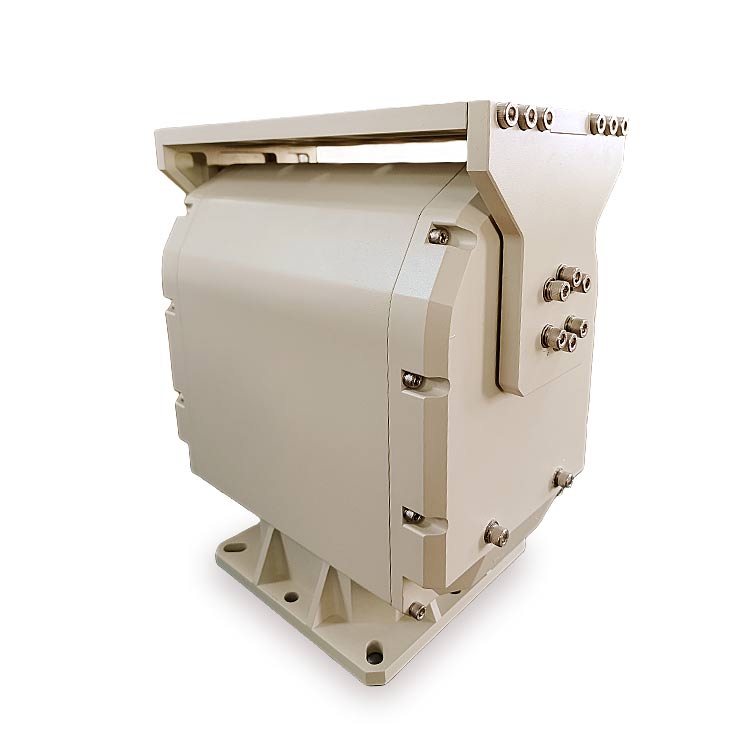

Desciription of Pan-Tilt Positioner with 50kg / 110 lb Load Capacity

Engineered for extreme industrial and specialized surveillance applications, this ultra-heavy-duty pan/tilt unit delivers an exceptional 80 kg payload capacity with a robust 32 kg structural design. It ensures comprehensive coverage through 360° continuous horizontal rotation and a -45° to +45° tilt range, with controlled speeds of 0.01°–8°/s (horizontal) and 0.01°–4°/s (tilt), while maintaining ±0.1° repeatability.

The unit supports automated operations with two programmable patrol routes (40 presets each) and integrates seamlessly via PELCO-D protocol with RS422 interface. Built to withstand harsh conditions, it features an IP66 protection rating, operates in temperatures from -25°C to +65°C, and adapts to fixed installation, making it ideal for critical monitoring tasks in ports, industrial plants, and remote facilities.

Technical Specification of Pan-Tilt Positioner with 50kg / 110 lb Load Capacity

Model	H–S080W-PT
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous) ; Tilt: -45° to +45° (Limited)
Rotation Speed	Pan: 0.01°/s to 10°/s ; Tilt: 0.01°/s to 5°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Yes
Angle Feedback	Query-based / Real-time
Auxiliary Switch	None
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS422
Power Supply Voltage	DC48V
Power Consumption (Operating)	≤200W
Power Consumption (Standby)	≤100W
Operating Temperature	-25℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	176 lb / 80 kg(Center of Gravity Height: 2 in / 50 mm)
Dimensions (LWH)	15 x 8.7 x 15.7 in (380 x 220 x 400 mm)
Weight	70.5 lb /32kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop System (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable (8-core) 1x DC24V Output Power Cable (20A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable (8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication)

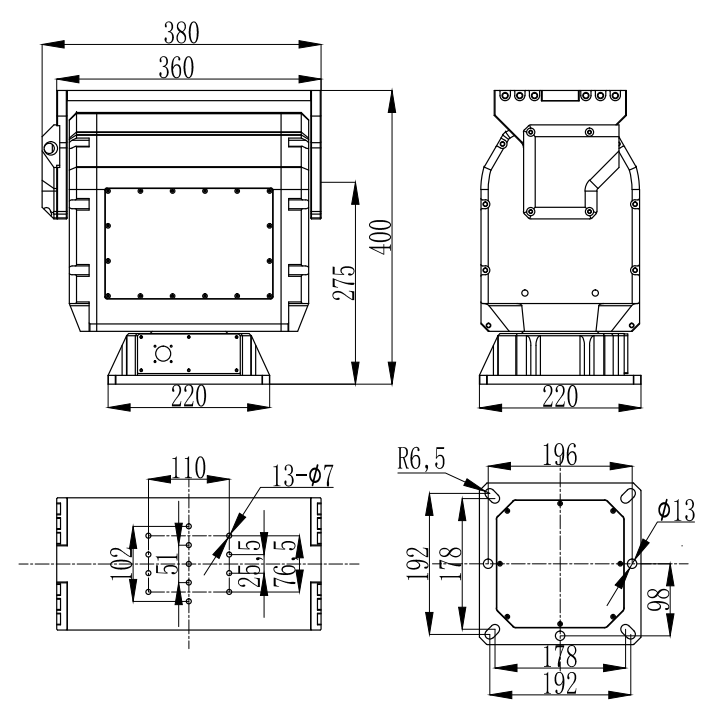

Dimension of Pan-Tilt Positioner with 50kg / 110 lb Load Capacity

FQA of Pan-Tilt Positioner with 50kg / 110 lb Load Capacity

1、Can the communication interface be changed to a network (IP) interface?

The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
