Agile Outdoor Pan/Tilt Positioner | Dual-Axis Precision

Agile Outdoor Pan/Tilt Positioner | Dual-Axis Precision | 1kg Payload

Maximum Load: 1 kg/ 2.2 lb

Weight: 2.3 kg/ 5.1 lb

Rotation: Horizontal 360° continuous; Tilt -60° to +20° (limited)

• Speed: Horizontal 0.01°–15°/s; Tilt 0.01°–10°/s

• Repeat Positioning Accuracy: ±0.1°

• Ingress Protection: IP66

• Auto Patrol: 2 routes, 40 presets per route

• Communication Protocol: PELCO-D

• Interface: RS422

• Operating Temperature: -10°C to +55°C

Desciription of Pan-Tilt Positioner with 1kg / 2.2 lb Load Capacity

This compact yet highly agile pan/tilt unit is designed for applications requiring rapid response and precise positioning. With a 1 kg payload capacity and a lightweight body of 2.3 kg, it achieves smooth 360° continuous horizontal rotation (0.01°–15°/s) and a tilt range of -60° to +20° (0.01°–10°/s), ensuring exceptional tracking flexibility.

The unit maintains a repeat positioning accuracy of ±0.1% and supports automated operations with two patrol routes (40 presets each). Compatible with PELCO-D protocol via RS422 interface, it operates reliably in temperatures from -10°C to +55°C. Its IP66 rating make it suitable for dynamic environments .

Technical Specification of Pan-Tilt Positioner with 1kg / 2.2 lb Load Capacity

Model	H–S001W-PT
House Color	Gray
Rotation Angle	Pan: 0° to 360° (Continuous); Tilt: -60° to 20° (Limited)
Rotation Speed	Pan: 0.01°/s to 15°/S; Tilt: 0.01°/S to 10°/s
Preset Positions	200
Positioning Accuracy	±0.1°
Power-On Self-Test	Yes
Angle Feedback	Query-based / Real-time
Auto Cruise	2 patterns, 40 points each
Auto Home	Configurable (1～60 min)
Auto Scan	1 pattern
Salt Spray Resistance	No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
Communication Protocol	PELCO_D
Baud Rate	9600bps(2400/4800/115200bps selectable)
Communication Interface	RS422
Power Supply Voltage	DC24V
Power Consumption (Operating)	≤50W
Power Consumption (Standby)	≤5W
Operating Temperature	-10℃～+65℃，non-condensing
Storage Temperature	-40℃～+65℃
Payload	2.2 lb / 1 kg（Center of Gravity Height: 0.8 in / 20 mm）
Dimensions (LWH)	5.9 x 3.9 x 6 in (150 x100 x152 mm)
Weight	5.1 lb / 2.3 kg
Mounting Type	Top Mount
Self-Locking	Self-Locking
Ingress Protection (IP)	IP66
Installation Environment	Fixed Installation
System Type	Open-Loop (No Encoder)
Top Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Output Power Cable (5A)
Bottom Cable Pass-through	1x Gigabit Ethernet Passthrough Signal Cable(8-core) 1x DC24V Input Power Cable (System Power) 1x RS422 (Unit Communication)

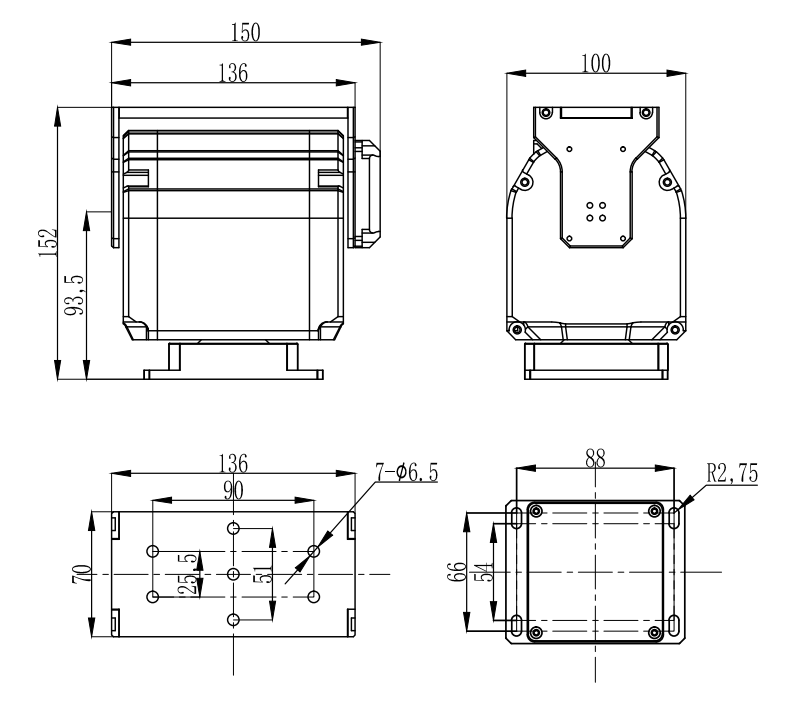

Dimension of Pan-Tilt Positioner with 1kg / 2.2 lb Load Capacity

FQA of Pan-Tilt Positioner with 1kg / 2.2 lb Load Capacity

1、Can the communication interface be changed to a network (IP) interface?

The unit comes standard with an RS422 interface. A network interface for seamless IP connectivity is available as a custom option for projects that require it.
